Legacy Web UI:

  1. Connect laptop to the controller, login as operator to the master controller
  2. Set the FreeCharging to OFF
  3. Enable Local Whitelist
  4. Add RFID's to List Of Entries In Local Whitelist
  5. If Local Whitelist Learning Mode has been set ON, you can swipe the RFID cards for the reader
  6. Save & Reboot from the bottom of the page


Web UI 2.0:

1. Connect laptop to the controller

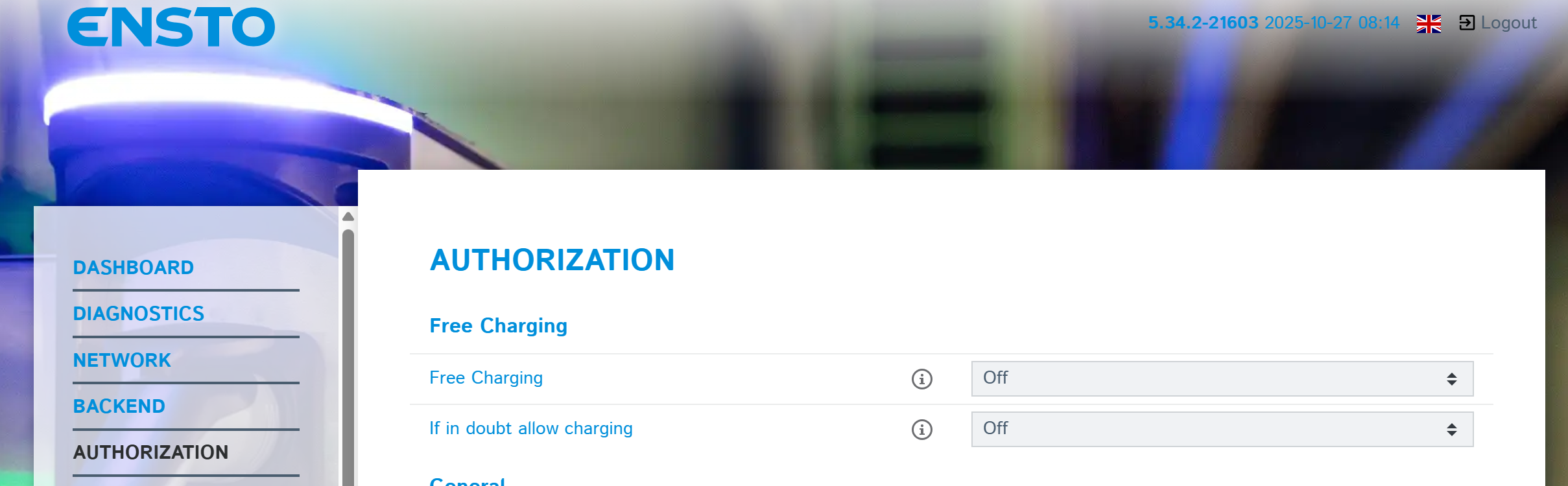

2. From page Authorization, set the Free Charging OFF

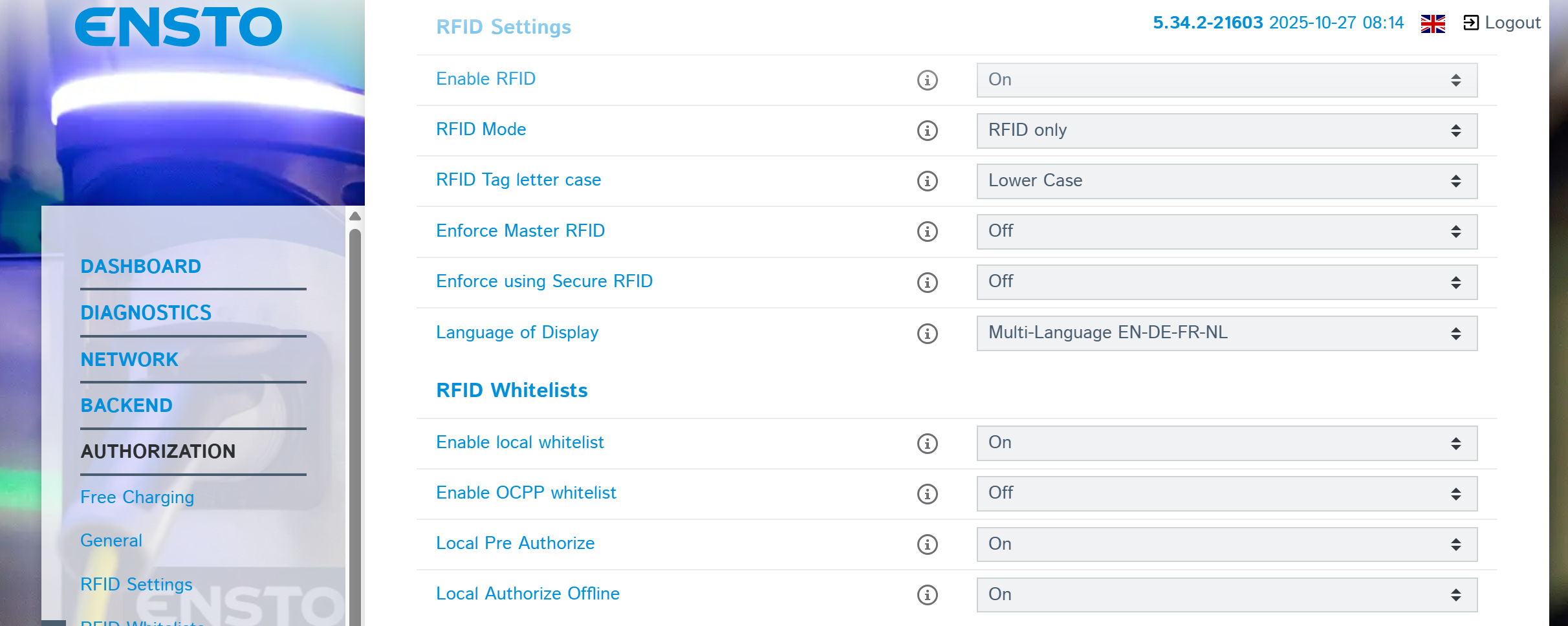

3. From page Authorization, Enable local whitelist

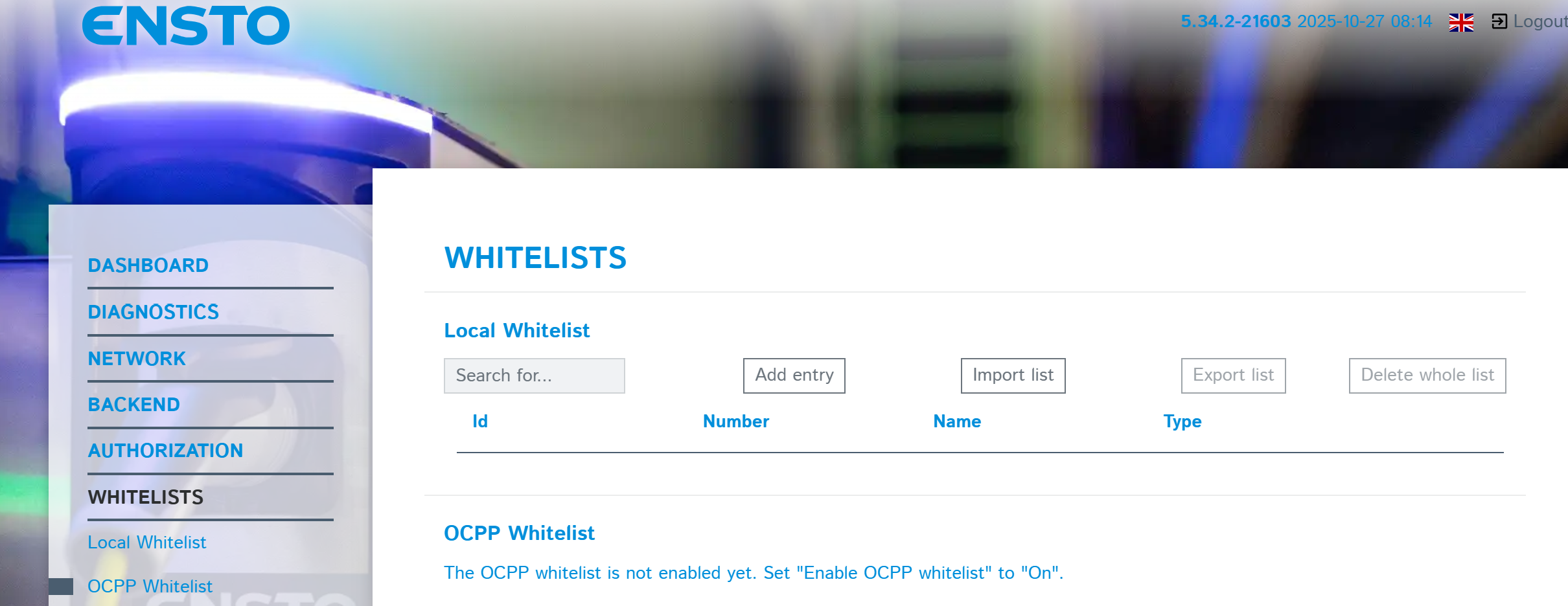

4. On page Whitelists, you can add RFID cards on Add Entry by manually typing the RFID card ID or showing the card for the reader

5. You can also import an excel file with all the RFID cards added below each other

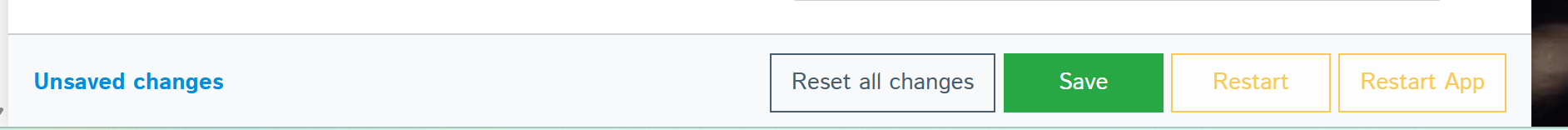

6. Save the changes you have made
