When the state page of the charger needs to be checked, or the configuration parameters changed, please follow the steps below.

The Micro-USB cable used in this topic must be a USB data cable and not charge-only Micro-USB cable.


Step-by-step guide

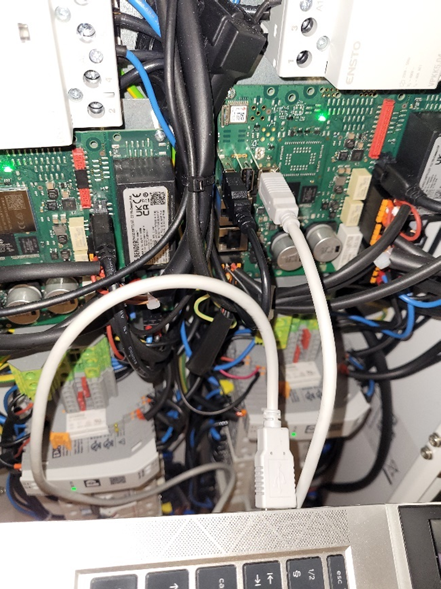

  1. Take Micro-USB cable and connect the USB-A connector to your Windows 7 or 10 laptop and the Micro-USB connector to Slave (right hand side) controller.
  2. NOTE! A single-plug charger has only one controller, which is the Master controller. You can connect to this with the instructions of the Slave controller.

  3. If required, install the RNDIS driver for Windows
  4. Open web browser (for example Chrome or FireFox)
  5. Load the below web pages depending which controller's state page you want to see
    1. If you need to access the Master controller, open page: http://192.168.123.123:81/state
    2. If you need to access the Slave controller, open page: http://192.168.123.123/state
  6. Load the below web pages depending which controller's Operator page you want to see
    1. If you need to access the Master controller's Operator page, open page: http://192.168.123.123:81/operator/operator
    2. If you need to access the Slave controller's Operator page, open page: http://192.168.123.123/operator/operator
  7. If the web page asks for login credentials, please provide the login credentials


Another possible way to connect laptop to controller

USB-to-Ethernet adapter is needed. It must to be inserted into USB-A connector (in dual sided charger you have to connect the connector in to the controller board you are trying to configure).

From the USB-to-Ethernet adapter the Ethernet cable goes in to the laptop.

  1. You will need to change the IP-address of your laptop to static address.
  2. For example: (IP-address: 192.168.124.120), (Subnet mask: 255.255.255.0), (Gateway: 192.168.124.1).
  3. Open web browser (for example Chrome or FireFox).
  4. Open state page: http://192.168.124.123
  5. Or open operator page: http://192.168.124.123/operator/operator
  6. If the web page asks for login credentials, please provide the login credentials.
